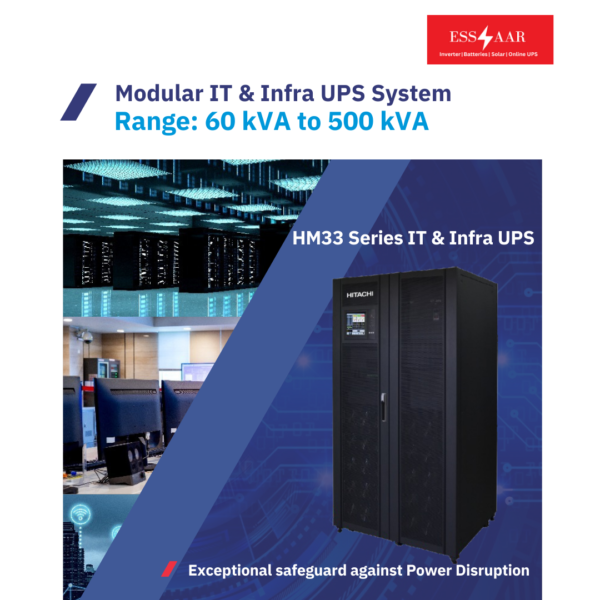

About HM33 Series IT & Infra UPS:
HM33 Series modular UPS provides the most compact footprint of less than 2m2 with maximum capacity of 900kVA. With best reliability and high performance, it has been leading the domestic market for years. HM33 series UPS is considered to be the best power protection solution for large data centres, as well as for sensitive electronics. The HM33 series UPS having user friendly LCD touch screen display. This display provides graphical and text information of alarms, status data, instructions and faults. User can have friendlier and safer operation.
The HM33 series UPS keeps your network protected while saving on cost and data centre space. With best in class true online double conversion technology,
redundancy options and flexible battery configurations and provides best reliability. This UPS is the Next Generation of true online, double conversion digital modular UPS.
Designed to meet the high availability power for wide variety of applications (IT, non-IT & medical), HM33 series combines innovation and simplicity and low total cost of ownership. The result is a power system that delivers both reliability and a return on investment.
Features:
— User friendly LCD display provides graphical and text based information — Modular design of subsystem, convenient for field maintenance
— All components are in module so less fault point and higher reliability
— The hot-swappable power modules take unique structure design
— Alarms data store in system (890 alarms)
— Less space needed Inherently N+X redundant
— Smart sleep function can intelligently make some power modules go to sleep, when load is relatively low to increase efficiency
— Only front access up to 120 kVA UPS and front and rare access for higher ratings UPS — On site setting supported, easy for factory testing
— Can be paralleled up to 30 modules — Wide voltage and frequency range for input supply
— Available in 30 kVA and 50 kVA module for multiple available options
— Programmable dry contacts are available in HM series UPS
Optional Features:
Isolation transformer
SNMP card
Capacity enhancement at site
Configuration:
Hot swappable modular concept
Can be paralleled up to 30 modules
Technology:
Fully DSP controlled IGBT based
